Description

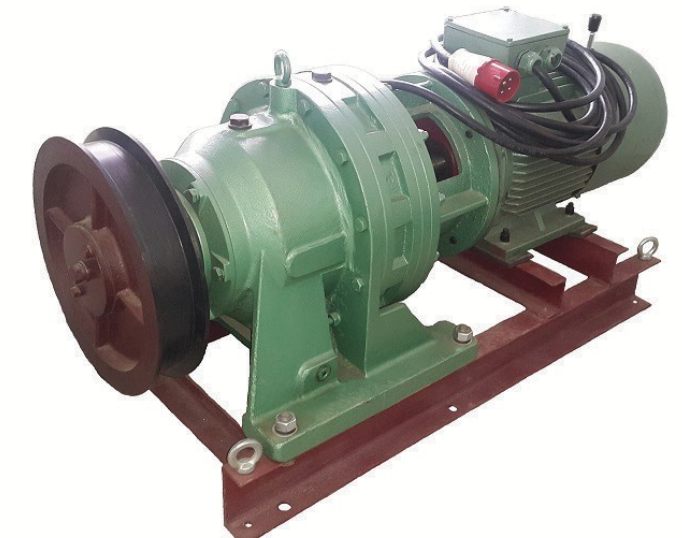

Backbone of underground material transport, especially on inclines. It’s a specialized system where a continuous rope loop moves equipment, ore, or waste through a mine’s haulage ways.
| Feature | 7.5kW Unit | 22kW Unit | 37kW Unit |
| Motor Rating | 7.5 kW | 22 kW | 37 kW |
| Max Rope Pull | 1,015 kg (10 kN) | 3,044 kg (30 kN) | 5,119 kg (51 kN) |
| Rope Speed | 45 m/min | 45 m/min | 45 m/min |
| Input Speed | 1440 RPM | 1440 RPM | 1440 RPM |
| Total Mass | ~330 kg | ~613 kg | ~658 kg |
| Rope Compatibility | 10mm – 12mm | 16mm – 18mm | 18mm – 22mm |
| Mounting Type | Floor/Bedplate | Floor/Bedplate | Floor/Bedplate |
